TV Splitters, attenuators, tilters

Active TV Splitters

Characteristic data 4 - way 5 - way
Insertion loss +6 dB +6 dB (out 1,4,5)  + 2 dB (out 2,3)
Isolation 20 dB 20 dB
Power DC 12V/35mA through out4                                              through  out5
Type AR4n AR5n
Connectors F
Dimension of case (mm) 40 x 30 x 20 50 x 40 x 20
Price 22,90 € 24,90 €

active_tv_splitter
Active splitter 4n  (40...862MHz)


Signal coupler and tilters

Characteristic data signal coupler 13 dB tilter 50...400 MHz tilter 400...862 MHz
Insertion loss 1,5 dB / 13dB coupling 0,5 dB / 400MHz                10dB / 47MHz 0,5 dB / 862MHz             13dB / 400MHz
Isolation 23 dB
Power DC pass (0,3A max) selectable
Type 107 108 113
Connectors F
Dimension of case (mm) 25 x 25 x 20 25 x 25 x 20 25 x 25 x 20
Price 6,30 € 6,20 € 5,90 €

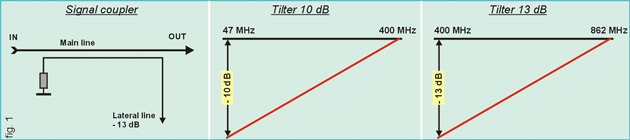

Schematic about signal coupler and tilters


tilter_50-400MHz
Tilter (sloper) 50...400MHz



TV attenuators

Characteristic data variable precise variable fix attenuator
Insertion loss 0 dB...20 dB 0,5 dB...18 dB 3 dB...30dB step 3dB
Frequency range (MHz) 20...862 20...862 10...2200
Power DC pass (0,3A max) selectable
Type 111P 111 110
Connectors F
Dimension of case (mm) 40 x 30 x 20 25 x 25 x 20 25 x 25 x 20
Price 14,60 € 12,90 € 11,90 €

Attenuator precise CH1...CH69 Attenuator  CH1...CH69
