Wobblers

Wobbler 900 MHz - WR35

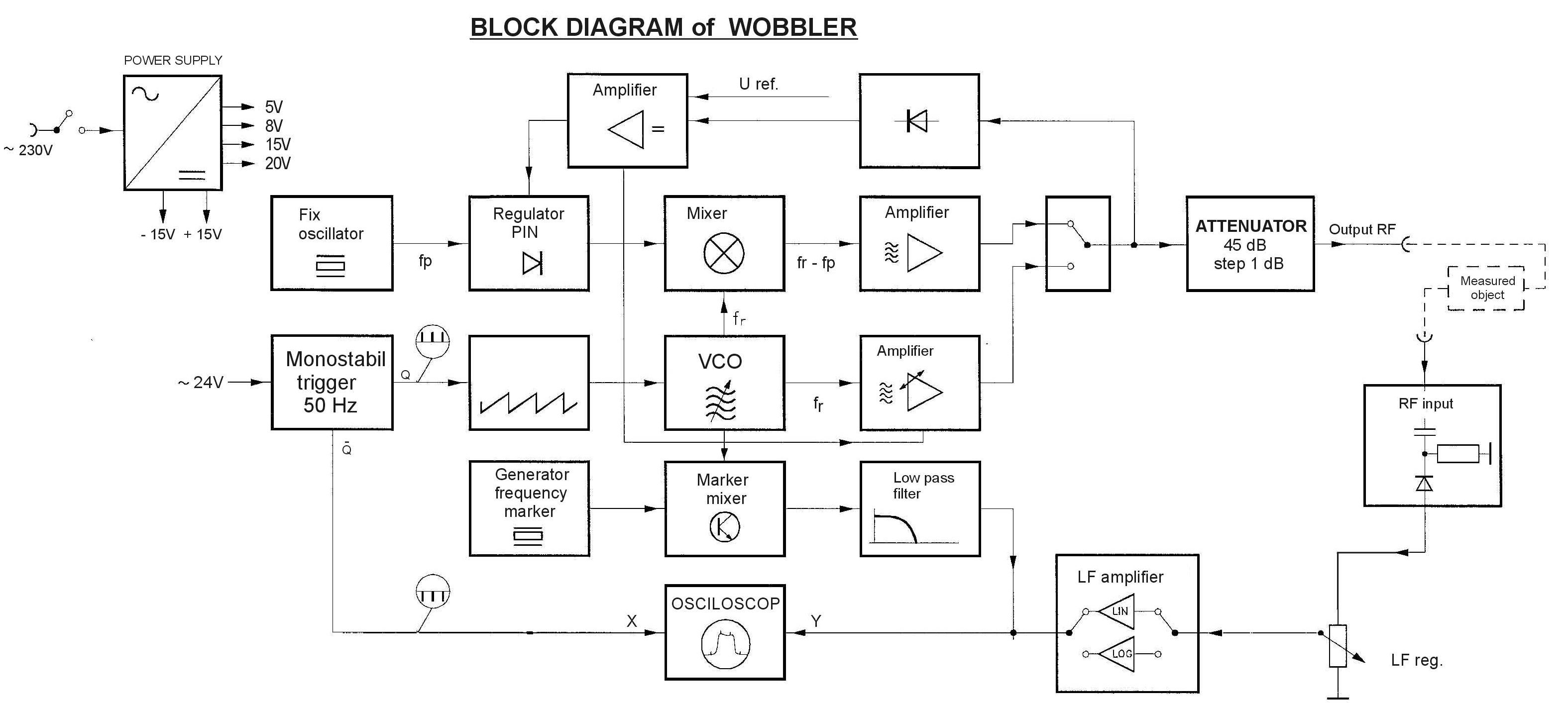

See also:  » block diagram of wobbler .jpg 300KB


woblery.jpg, 18kB


WR35 is an easy-to-operate compact instrument, which works in a wide frequency band of 1 – 900 MHz in a SINGLE RANGE! It is a source of a stable-level signal, with which you can measure the amplitude - frequency response, gain or loss of any active or passive two port in a wide dynamic range of 50 dB (log. mode). When the wobbling is turned off, the instrument can also be used as a generator. As a display unit, an oscilloscope.

Specifications:

Frequency range .................................................................... 1 - 900MHz
Output power .......................................................................... +3 dBm (110dBµV)
Impedance............................................................................... 75 Ω or 50 Ω
Flatnes (on max. output) ...................................................... ± 1 dB
Attenuator ................................................................................ 45 dB step 1 dB

Harmonics spurious ............................................................. > 35 dB
Frequency markers ............................................................... 100, 10, 1 MHz
   - setting size ........................................................................  infinitely adjustable
   - mutual resolution ............................................................. simultaneously high and width
Freqency span .......................................................................  0 - 900 MHz  and 0 - 90 MHz
   - setting ................................................................................  infinitely adjustable
dynamic properties ............................................................... 50 dB
Outpu for freq. counter ........................................................... yes
Output for oscilloscope ........................................................ 0,5 V/Div. - vert., 2 ms/Div. hor.
   - impedance ........................................................................ 1 kΩ

Weight ...................................................................................... 2,8 kg
Dimension .......................................................................... 90 × 240 × 241 mm (h, v, d)
Warantly ................................................................................... 2 years

Price: 999 €





Wobbler economic 1...100MHz  and 5...800MHz.

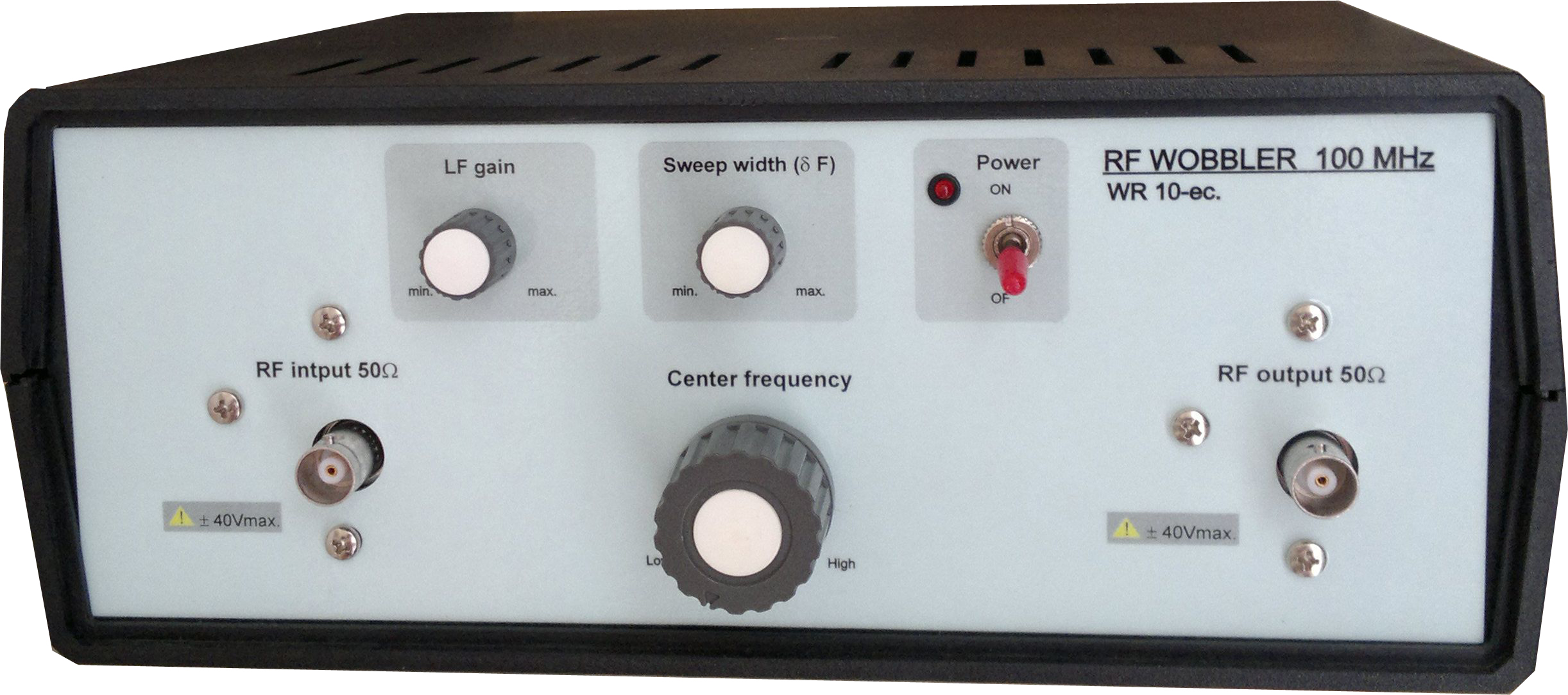

Wobbler 100 MHz - WR10-economic and wobbler 800MHz - WR35economic.

woblery.jpg, 18kB


WR10 and WR 35-economic is an easy-to-operate compact instrument, which works in a wide frequency band of in a SINGLE RANGE! It is a source of a stable-level signal, with which you can measure the amplitude - frequency response, gain or loss of any active or passive two port. When the wobbling is turned off, the instrument can also be used as a generator. As a display unit is an oscilloscope.

Specifications:

Frequency range ................................................................ 1...100MHz and 5...800MHz
Output power .......................................................................... +0 dBm (107dBµV)
Impedance............................................................................... 75 Ω or 50 Ω
Flatnes (on max. output) ...................................................... ± 1,5 dB
Harmonics spurious ............................................................. > 25 dB
Frequency markers ............................................................... 100, 10 MHz
   - mutual resolution .............................................................height-resolution
Freqency span .......................................................................  20 - 900 MHz
   - setting ................................................................................  infinitely adjustable
Output for oscilloscope ................................................ 0,5 V/Div. - vert., 2 ms/Div. hor.
   - impedance ........................................................................ 1 kΩ
Warantly ................................................................................. 2 years

Price: 599 €
