Antenna Selective Combiners

Collects chosen channels  with channels 1...69 (rest)

Combine 2 UHF antenna feeds into a SINGLE feed suitable for connection to your TV. This antenna combiner merges the signals from a 1st UHF antenna with a 2nd UHF antenna on the same down lead. It is ideal for those who need to combine new UHF antenna with an existing UHF antenna. TV channels you can define yourself, and they will be tuned according to your needs. Frequencies you can chose: Standard ATSC with channel bandwidth 6MHz (CH 14...CH69), or standard DVB-T (DVB-T2) with channel bandwidth 8MHz (CH 21...CH60). VHF band can be done also. Pictures is only for an example.

When ordering please write if you need DC power for Input number 1, or input number 2, or both inputs will be DC pass.

Characteristic data collects 1 chosen channel with CH 1...69 collects 2 chosen channel with CH 1...69 collects 3 chosen channel with CH 1...69
Pass attenuation 1st input 1dB
Pass attenuation inputs 2,3,4 4dB
Type 006 006B (006B3n) 006G (006G4n)
Connectors F F F
Dimension of case (mm) 40 x 30 x 20 50 x 40 x 20 70 x 40 x 20
Price 14,90 € 19,50 € 23,90 €

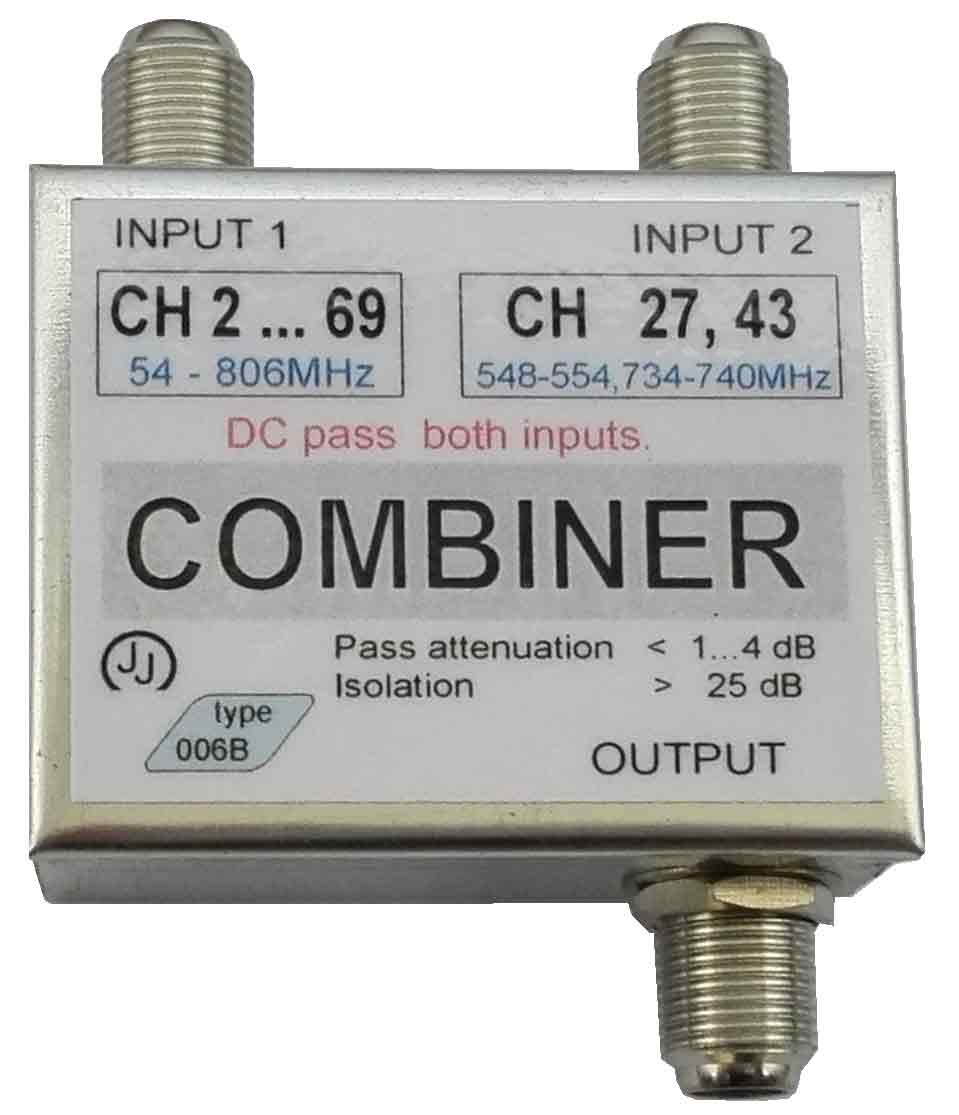

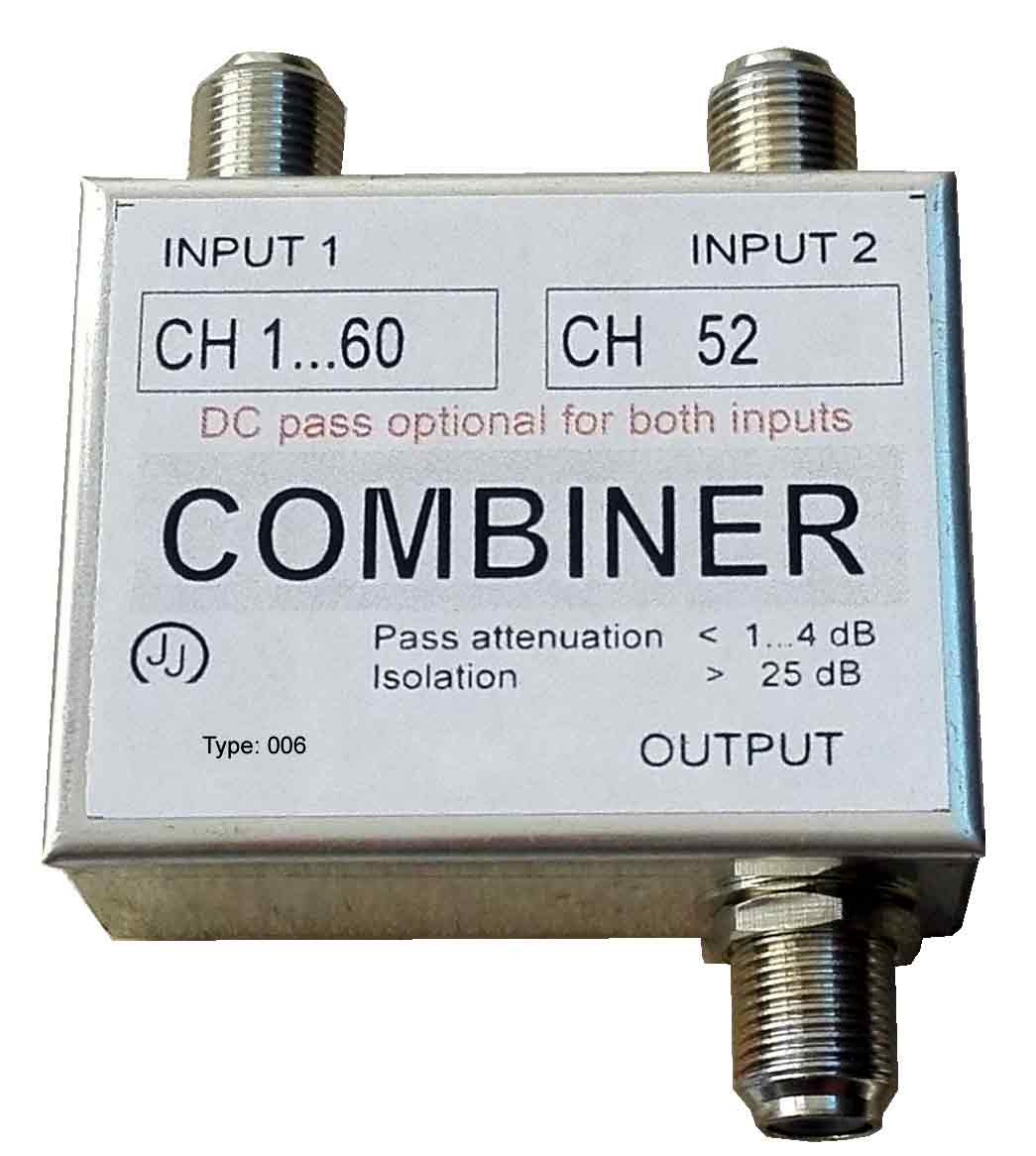

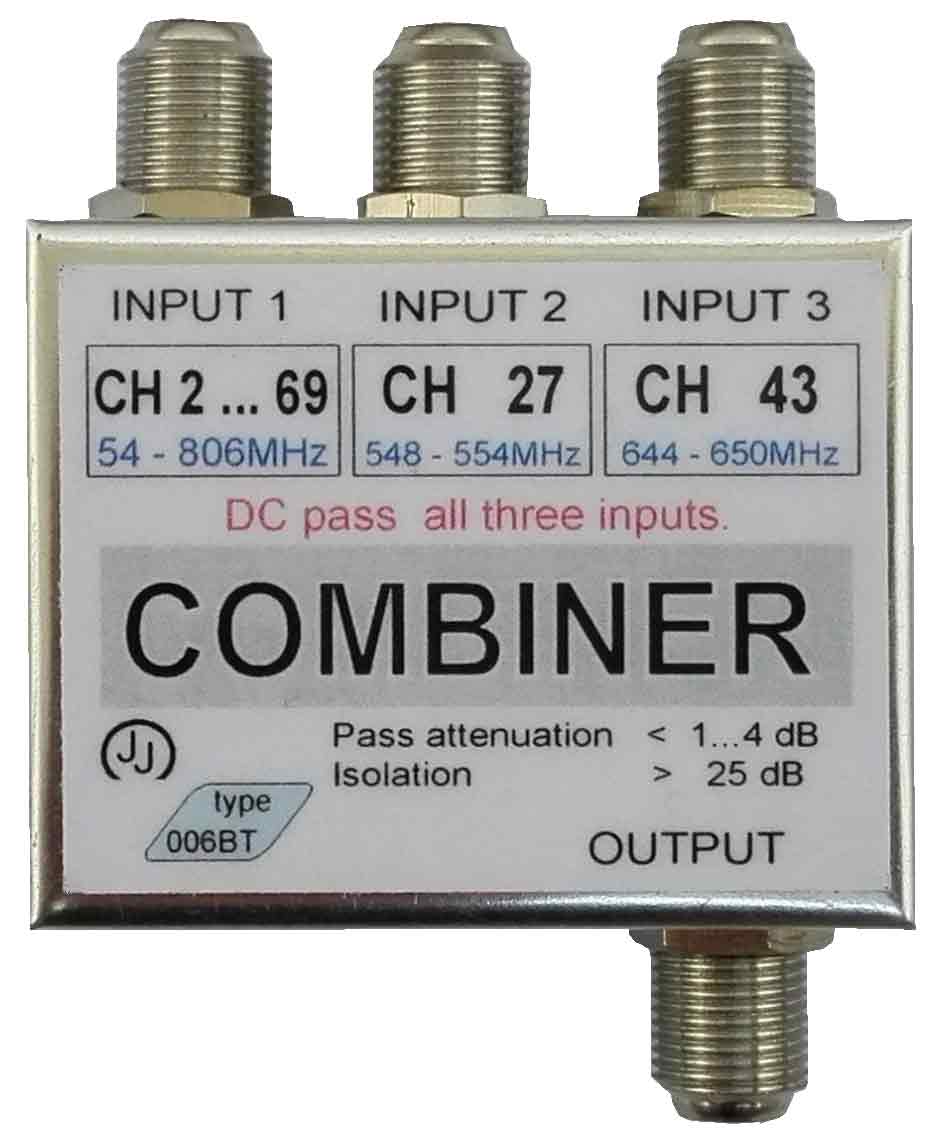

1_zlucovac.jpg, 5,2kB 2_zlucovac.jpg, 7,3kB 3_zlucovac.jpg, 36kB
1 chosen CH + rest 2 chosen CH in 1 input + rest 3 chosen CH in 1 input + rest

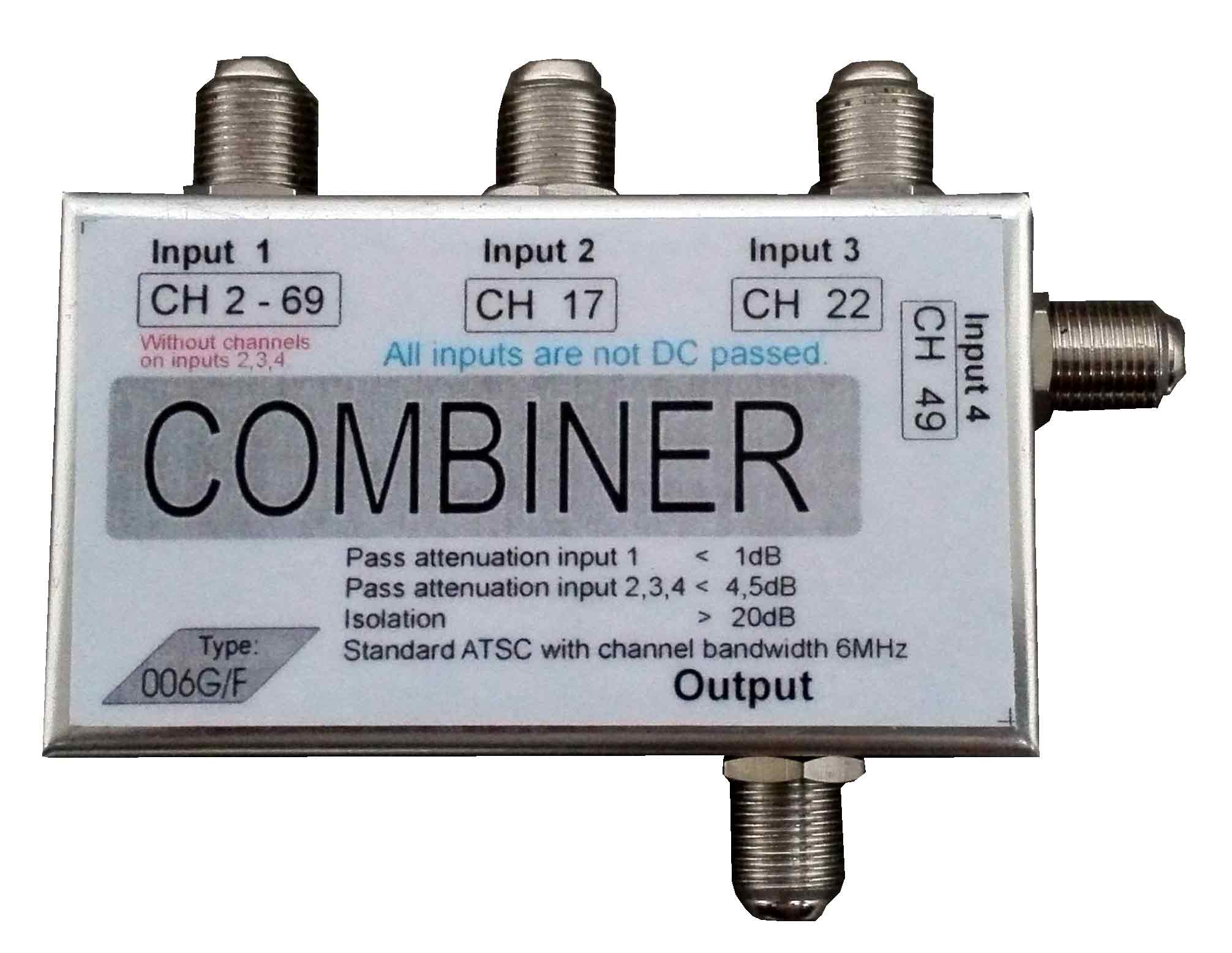

UHF_combiner_selective  selective_combiner_UHF
2 chosen CH in 2 inputs + rest 3 chosen CH in 3 inputs + rest


Selective channel combiners

Characteristic data collects 2 chosen channels collects 3 chosen channels collects 4 chosen channels
Pass attenuation 4,5dB
Type 020 030 040
Connectors F F F
Dimension of case (mm) 50 x 40 x 20 70 x 40 x 20 70 x 60 x 20
Price 15,90 € 19,50 € 23,90 €

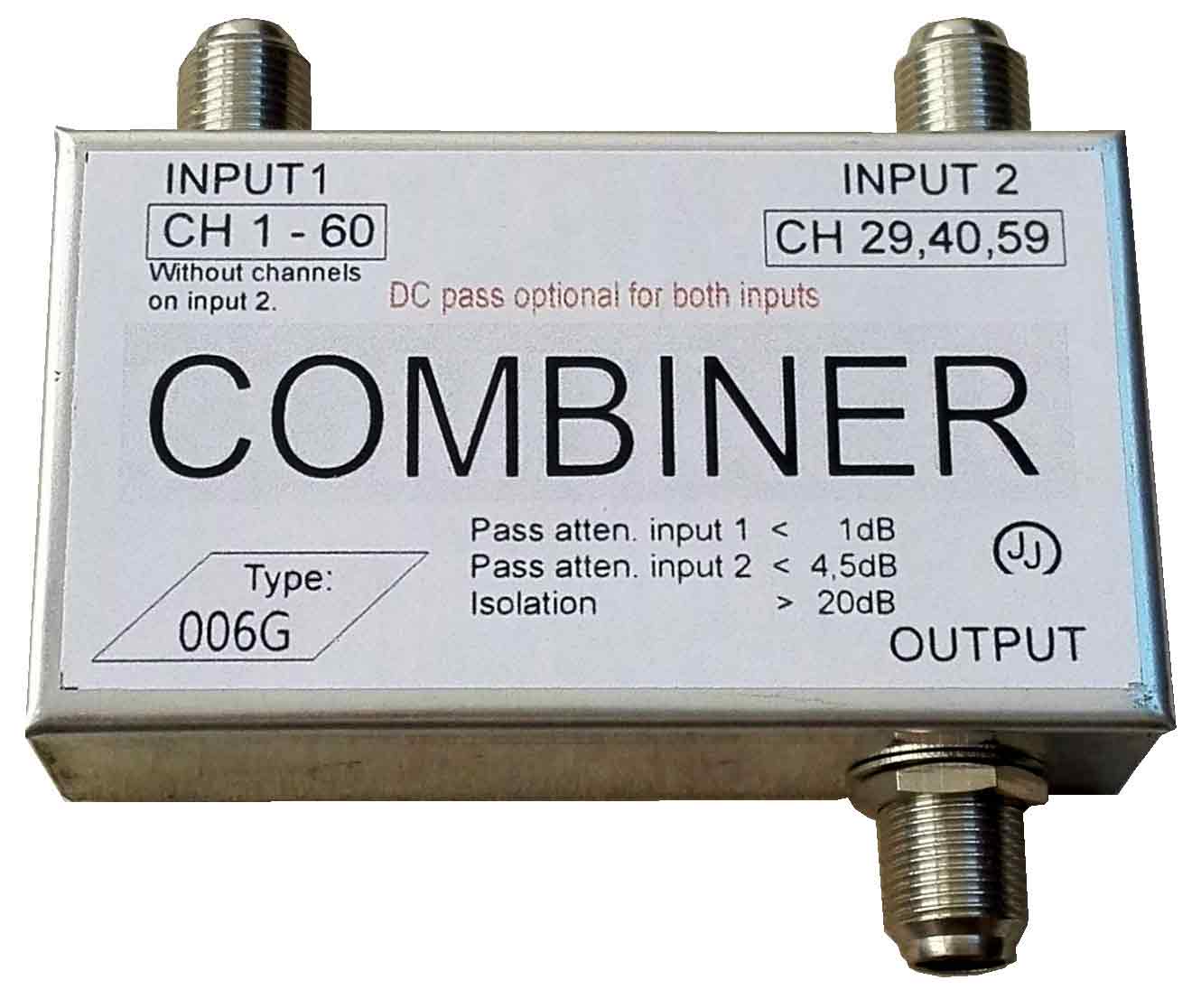

5_zlucovac.jpg, 6,8kB
Combiner 3 chosen channels - type 030



Bandpass combiners

TV + Satellite combiner is made from low and high pass filter therefore has excellent isolation
Characteristic data TV (CH1...69) + SAT     (950...2400 MHz ) Combiner 2 inputs  wideband Combiner 3 inputs  wideband Combiner 4 inputs  wideband
Pass attenuation 1dB (TV); 3dB (SAT) 3,5...4dB 1=3,5dB2,3=7dB 7,5dB
Isolation 45dB 20dB 20dB 20dB
Type 015 122 123 124
Power supply pass input 2 selectable
Connectors F F or IEC (TV standard)
Dimension of case (mm) 50 x 40 x 20 25 x 25 x 20 25 x 25 x 20 40 x 30 x 20
Price 13,90 € 5,50 € 6,50 € 7,90 €

combiner TV + SAT selective
Combiner CH1...69+SAT Combiner 2 inputs non-selective Combiner 4 inputs non-selective
